SANIpore® UNY

Sterilizing Grade Filter Elements

SANIpore® UNY filters are designed for ultrafine particle removal in ultrapure water, chemicals, solvents, and other aqueous solutions. For customers who have this need, the SANIpore® UNY filter is a good choice. In terms of manufacturing, we have adopted a nylon6,6 media with good characteristics.

With pore sizes ranging from 0.10 to 0.65 µm, these filters are versatile and can be used across various applications. Whether in laboratory-scale or full production, the use of identical materials guarantees consistent and reliable filtration results.

SANIpore® UNY

Features and Quality

  • Rigorously 100% Integrity Tested
  • Compliant with FDA Food Contact Regulations
  • Utilizes Thermal Bonding
  • Non-Fiber Releasing
Features and Quality

Construction of Materials

Filter Membrane Nylon6,6 Membrane
Media Support Polypropylene
End Caps Polypropylene
Inner Core Polypropylene
Outer Cage Polypropylene
Sealing Method Thermal Bonding
O-rings Buna, Viton (or FKM), EP, Silicone, Encapsulated   Silicone, Encapsulated Viton (or FKM)

Maximum Operating Parameters

Differential Pressure ●Forward 50 psid (3.4 bard)at 20 C(68 °F)

●Reverse 40 psid (2.7 bard) at 20 C(68 °F)

Operating Temperature 82 C(180 °F) at 10 psid(0.69 barg) in water
Recommended Changeout Pressure 35psid(2 .4barg)

Filtration Area (Nominal)

CAPSULES CARTRIDGES AND CAPSULES ARTRIDGES
Length 2” 5” 10” 20” 30” 40”
5.08cm 12.7cm 25.4cm 50.8cm 76.2cm 101.6cm
Area 1.2 ft2 3.3 ft2 7.0 ft2 14.0 ft2 21.0 ft 28.0 ft2
0.11m2 0.30m2 0.65m2 1.30m2 1.95m2 2.60m2

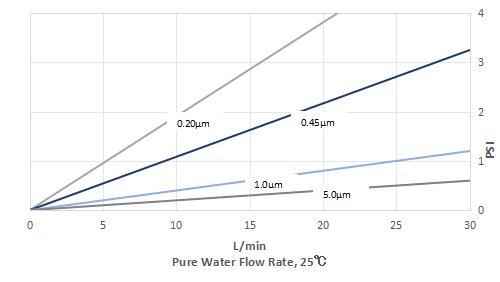

Water Flow Characteristic

Water Flow Characteristic-UNY

613 51 0010 30 01 S A P
Filter Type
613=SANIpore® UNY
Filter Configuration
51=Cartridge
Pore Size
0010=0.1um
0020=0.22um
0045=0.45um
0065=0.65m
Filter Size
30=5″
31=10″
33=20″
34=30″
35=40″
Connector
01=222Fin
02=222Flat
03=226Fin
04=226Flat
05=DOE
O-Ring
S=Silicone
E=EPDM
V=Viton
Sterilization
A=Autoclave
P=Pharmaceutical
grade

Notice: Due to filter has variety in design, please contact with BROTHER sales for more information

Features and Quality

Features and Quality
  • Rigorously 100% Integrity Tested
  • Compliant with FDA Food Contact Regulations
  • Utilizes Thermal Bonding
  • Non-Fiber Releasing

Specification and Data

Construction of Materials

Filter Membrane Nylon6,6 Membrane
Media Support Polypropylene
End Caps Polypropylene
Inner Core Polypropylene
Outer Cage Polypropylene
Sealing Method Thermal Bonding
O-rings Buna, Viton (or FKM), EP, Silicone, Encapsulated   Silicone, Encapsulated Viton (or FKM)

Maximum Operating Parameters

Differential Pressure ●Forward 50 psid (3.4 bard)at 20 C(68 °F)

●Reverse 40 psid (2.7 bard) at 20 C(68 °F)

Operating Temperature 82 C(180 °F) at 10 psid(0.69 barg) in water
Recommended Changeout Pressure 35psid(2 .4barg)

Filtration Area (Nominal)

CAPSULES CARTRIDGES AND CAPSULES ARTRIDGES
Length 2” 5” 10” 20” 30” 40”
5.08cm 12.7cm 25.4cm 50.8cm 76.2cm 101.6cm
Area 1.2 ft2 3.3 ft2 7.0 ft2 14.0 ft2 21.0 ft 28.0 ft2
0.11m2 0.30m2 0.65m2 1.30m2 1.95m2 2.60m2

Water Flow Characteristic

Water Flow Characteristic-UNY

Ordering Information

613 51 0010 30 01 S A P
Filter Type
613=SANIpore® UNY
Filter Configuration
51=Cartridge
Pore Size
0010=0.1um
0020=0.22um
0045=0.45um
0065=0.65m
Filter Size
30=5″
31=10″
33=20″
34=30″
35=40″
Connector
01=222Fin
02=222Flat
03=226Fin
04=226Flat
05=DOE
O-Ring
S=Silicone
E=EPDM
V=Viton
Sterilization
A=Autoclave
P=Pharmaceutical
grade

Notice: Due to filter has variety in design, please contact with BROTHER sales for more information
