| Item | Power(W) | Temperature(C) | Material | Air Releaase |
| 5inch,226 Configuration | 180 | 0-150 | Outer Cage SUS304 Inner Cage SUS304/SUS316 |
Top and Bottom |
| 10inch,226 Configuration | 380 | 0-150 | ||
| 20inch,226 Configuration | 700 | 0-150 |

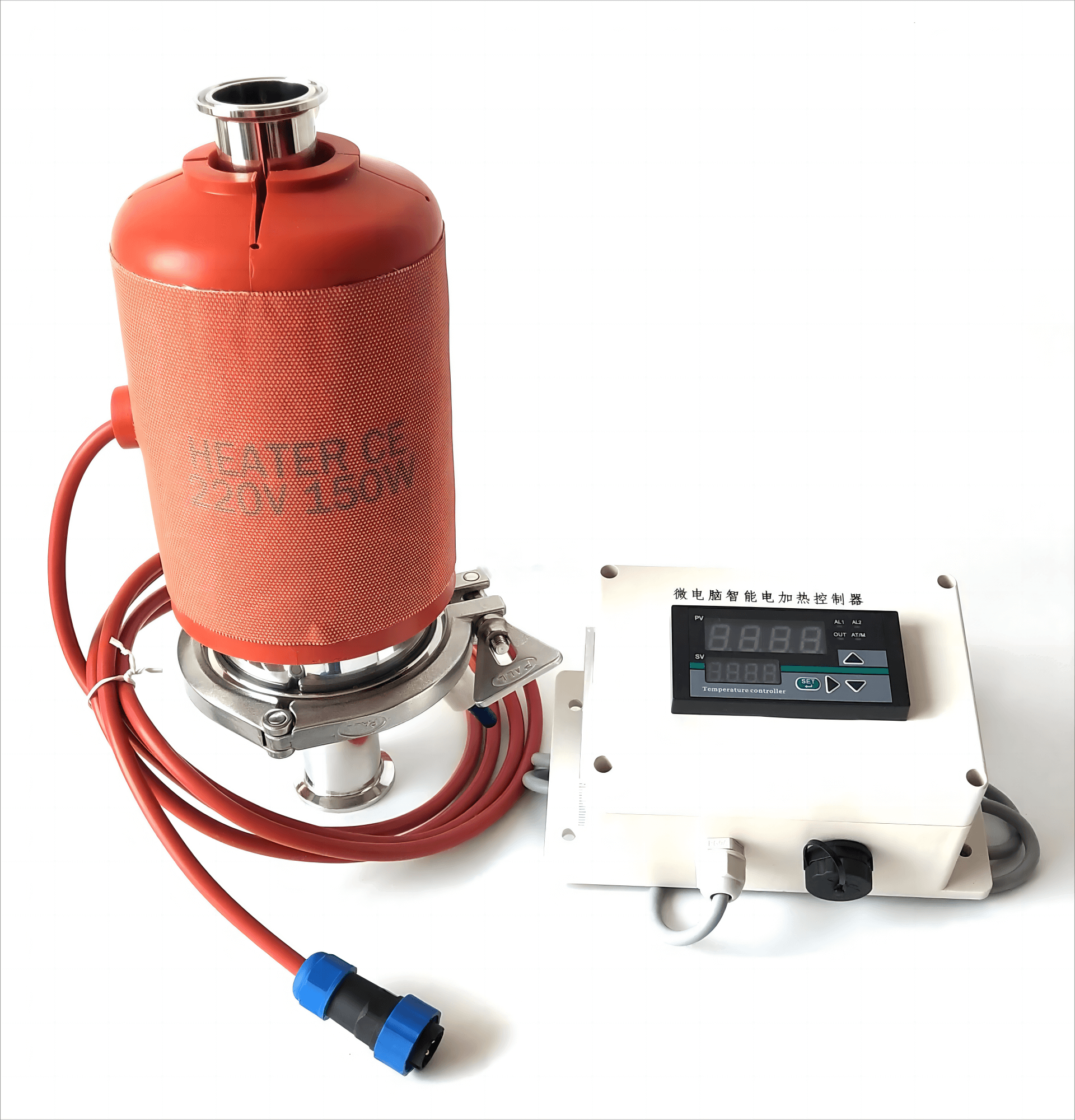

Electrical Heated Vent Filter
Reliable Gas Filtration Solution
The electric heating vent filter is designed to prevent condensate formation during gas filtration, ensuring consistent permeability and reducing the risk of microbial growth. It is widely applied in food, pharmaceutical, and biotechnology industries to support sterile gas processes.
The system integrates a flexible heating insulation housing with an intelligent temperature control unit, maintaining a stable operating temperature around the filter housing. Its lightweight structure, clean appearance, and simple installation make it well-suited for modern production environments. In addition to vent filtration, it can also be applied to liquor filtration and injection water systems.
Key Benefits of the Electric Heating Vent Filter
Protect your filtration systems with the Electric Heating Vent Filter — designed to prevent condensate buildup, safeguard gas permeability, and support sterile processing across food, pharmaceutical, and biotechnology industries.
- Flexible Heating Housing
- Easy Upgrade for Existing Systems
- Integrated Heating and Insulation Layers
- Independent Temperature Control Unit
- Comprehensive Safety Features
- Safe-Touch Heater Surface
Typical Applications
- Sterile Ventilation for Storage and Mixing Tanks: Prevents condensate buildup on filters used in injection water storage and mixing processes.
- Moisture Control for Freeze-Dryer Exhaust Filters: Assists in condensate removal and ensures reliable integrity testing after steam sterilization.
- Viscosity Reduction for High-Viscosity Fluids: Helps lower the viscosity of thick materials to facilitate smoother filtration.
| Heating Material | Composite silicone |
| Temperature Sensor | PT100, K type |
| Working Voltage | Single Phase AC |
| Working Power | 180W (5’’) , 380W (10’’) , 700W(20’’) |
| Protection Grade | IP65 |
| Temperature Range | 0-150℃ |
| Power Cable | 10A Three Hole Plug |
| Working Place | Temperature 0-50℃, wetting ≤85%，No corrosive and no strong electric radiation situations |

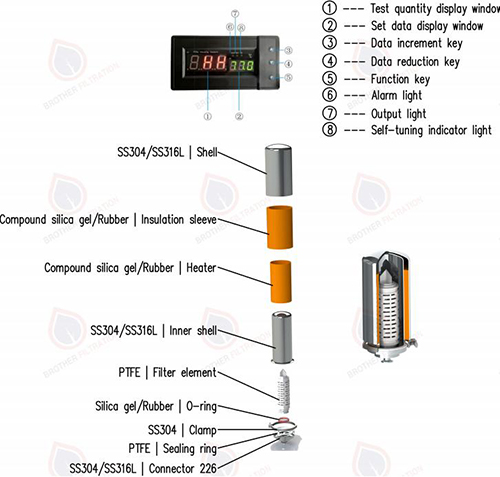

Features and Quality
Key Benefits of the Electric Heating Vent Filter
Protect your filtration systems with the Electric Heating Vent Filter — designed to prevent condensate buildup, safeguard gas permeability, and support sterile processing across food, pharmaceutical, and biotechnology industries.
- Flexible Heating Housing
- Easy Upgrade for Existing Systems
- Integrated Heating and Insulation Layers
- Independent Temperature Control Unit
- Comprehensive Safety Features
- Safe-Touch Heater Surface
Specification and Data
| Item | Power(W) | Temperature(C) | Material | Air Releaase |
| 5inch,226 Configuration | 180 | 0-150 | Outer Cage SUS304 Inner Cage SUS304/SUS316 |
Top and Bottom |
| 10inch,226 Configuration | 380 | 0-150 | ||
| 20inch,226 Configuration | 700 | 0-150 |
| Heating Material | Composite silicone |
| Temperature Sensor | PT100, K type |
| Working Voltage | Single Phase AC |
| Working Power | 180W (5’’) , 380W (10’’) , 700W(20’’) |
| Protection Grade | IP65 |
| Temperature Range | 0-150℃ |
| Power Cable | 10A Three Hole Plug |
| Working Place | Temperature 0-50℃, wetting ≤85%，No corrosive and no strong electric radiation situations |
Ordering Information
Why Choose Sanitek Vent Filters?
Sanitek Vent Filters are designed to offer a reliable and energy-efficient solution for critical filtration needs. With an intelligent heating and insulation system, they effectively prevent condensate buildup and ensure uninterrupted gas flow. Ideal for industries requiring sterile processes, these filters meet the highest standards in food, pharmaceutical, and biotechnology applications.
Our filters provide a seamless integration experience, allowing for easy upgrades to existing systems without extra costs. Equipped with advanced safety features and customizable temperature control, they provide both reliability and flexibility to enhance the overall performance of your filtration setup.

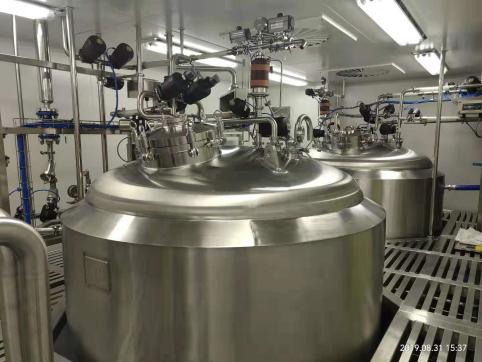

Sterile Vent Filtration for Storage and Mixing Tanks
Through Sanitek’s advanced vent filtration technology, we offer a reliable solution for sterile ventilation in storage and mixing tanks, ensuring compliance with international standards like USFDA and EU GMP. Our filters effectively prevent condensate buildup, which can compromise the sterility and integrity of your processes.
- Prevents Condensate Buildup
- Maintains Sterile Conditions
- Supports Compliance with USFDA and EU GMP
- Enhances Process Integrity
Common questions about Sanitek
How to Prevent Microorganism and Virus Contamination with Proper Filtration?
How to Prevent Microorganism and Virus Contamination with Proper Filtration?Proper filtration helps prevent microorganism and virus contamination in sensitive environments. Vent filter housings with high-performance filters capture airborne contaminants such as bacteria and viruses, maintaining sterile conditions. By controlling condensate buildup and airborne particles, these filters contribute to process safety and integrity, especially in industries like pharmaceuticals, biotechnology, and food production.
Why is Correct Sizing Important for Vent Filters?
Correct sizing of vent filter housings ensures efficient filtration and proper airflow. An undersized housing can cause clogging, reduced efficiency, and contamination risks, while an oversized housing can lead to unnecessary costs. Proper sizing ensures optimal filter performance, consistent airflow, and improved energy efficiency while extending the lifespan of the filter.
What is a Vent Filter Housing?
A vent filter housing is a protective enclosure that holds and supports the filter element within a ventilation system. It secures the filter and allows clean, filtered air to flow through, ensuring contaminants are removed before entering or exiting a system. Vent filter housings are available in various sizes and configurations to suit different applications, such as pharmaceutical and food industries.
What is the Purpose of a Vent Filter Housing?
The vent filter housing provides a secure space for the filter and ensures proper filtration of air entering or leaving a system. It protects the filter from damage while allowing airflow to maintain system integrity. Vent filter housings prevent contaminants from entering or exiting sensitive environments, ensuring sterile conditions in applications like storage tanks, fermentation vessels, and pharmaceutical manufacturing.
What is PTFE membrane?
Fiberglass membranes that are PTFE (polytetrafluoroethylene) coated are made of a woven glass-fibre base fabric that has been pre-coated with a silicon layer to stop moisture absorption and then coated with liquid PTFE. A membrane fabric with low water vapour permeability, excellent UV, anti-adhesive, and light translucency qualities is created by this technique.
How do you assure the quality of your products?
At Sanitek, we pay attention to the details of every link and strictly adhere to ISO 9001:2008 and ISO 13485:2005 standards to ensure the quality of our products.
In the raw material procurement phase, we work with reliable suppliers to ensure that the quality of raw materials meets our standard requirements.
In the production process, we strictly control the quality of each link to ensure that the manufacturing process of the product is stable and reliable. At the factory inspection stage of the final product, we carry out a comprehensive quality check to ensure that the product meets the customer’s requirements and specifications.
How should I order? Who should I contact and how long does it take for material to arrive?
Contact us directly for full details or email us at sales@sanitekfilter.com. And we will get back to you as soon as possible.
Regarding the arrival time of materials, the specific delivery time may vary depending on the product inventory and shipping distance, please inquire about the specific delivery time when contacting the sales team. We will do our best to ensure that you receive the required materials in a timely manner.
