In industries such as pharmaceuticals, biotechnology, and food processing, maintaining a sterile environment is a core element. Contamination can compromise product integrity, lead to costly recalls, and even pose risks to public health. One important component in ensuring sterility is the use of vent filters. These filters serve to protect processes and products from airborne contaminants.

This article will explore the various aspects of vent filters and their importance in maintaining a sterile environment.

What Are Vent Filters?

Vent filters prevent bacteria and other contaminants in the air or process gas (like nitrogen) from contacting water in storage tanks. As a tank fills, the air inside must escape. Typically installed in vents, air inlets, or outlets of equipment and containers, these filters.

The filtration process draws air through filter media designed to capture particles of varying sizes—ranging from dust and bacteria to fungal spores. With their robust construction, these filters are ideal for demanding environments that require long-lasting performance and reliable contamination control.

How Do Air Vent Filters Work?

Air vent filters with pleated membrane cartridges are commonly used in industries that require highly efficient air filtration. These filters are particularly useful in applications such as pharmaceutical production, biotechnology, and food processing. Here’s how these specialized filters operate:

Airflow Through the Filter

Air enters or exits through a vent where the filter is installed. Inside the housing is a pleated membrane cartridge, Inside the housing, a pleated membrane cartridge is used to maximize the filtration surface area while keeping the design compact. As air flows through, it encounters multiple folds of the membrane, providing more filtration capacity in a smaller space.

Filtration Medium – Pleated Membrane

The pleated membrane inside the filter is often made from materials like polyethersulfone (PES), polyvinylidene fluoride (PVDF), or polypropylene.These materials are selected to capture fine particles, such as bacteria, viruses, and other contaminants. The pleated design increases surface area. This boosts filtration efficiency without restricting airflow.

Multi-Layer Particle Capture

As the air passes through the pleated layers, larger particles such as dust and pollen are captured on the outer surface. Finer particles, like bacteria and microscopic debris, are trapped deeper within the layers of the membrane. The membrane’s porosity is designed to allow air to pass through while retaining even the smallest contaminants.

Clean and Sterile Airflow

Once filtered, the air exits free from harmful pollutants, ensuring a controlled and safe environment. In sterile applications, such as pharmaceutical manufacturing, these vent filters help maintain sterility. They also ensure that sensitive processes remain uncontaminated.

Durability and Reusability

Many air vent filters are designed to withstand multiple sterilization cycles. Those housed in stainless steel casings are particularly durable and can endure methods like steam autoclaving or chemical cleaning. This durability makes them ideal for industries where stringent hygiene standards are required and frequent cleaning is necessary.

Importance in Sensitive Industries

In industries such as pharmaceuticals, biotechnology and food production, vent filters help maintain sterile conditions by preventing airborne contaminants from entering production environments. This type of filter ensures the integrity of cleanrooms, preventing contamination that could compromise product quality or safety.

Why it’s important to have vent filters

Tank vent filter housings contribute significantly to maintaining the safety and integrity of tanks in various industries. By preventing contaminants such as dust, dirt, and airborne particles from entering, they help ensure the purity of the tank’s contents. In industries where cleanliness directly impacts product quality, these housings are indispensable.

In addition to controlling contamination, vent filter housings help regulate internal pressure by allowing excess air or gas to escape while filtering out harmful particles. This ensures the tank operates safely and efficiently, improving stability and reducing the risk of equipment failure.

These vent filter housings help protect the environment. They prevent harmful emissions and volatile organic compounds from being released into the atmosphere. This ensures compliance with environmental standards. By safeguarding both the equipment and the environment, tank vent filter housings are a key component in any efficient and responsible tank system.

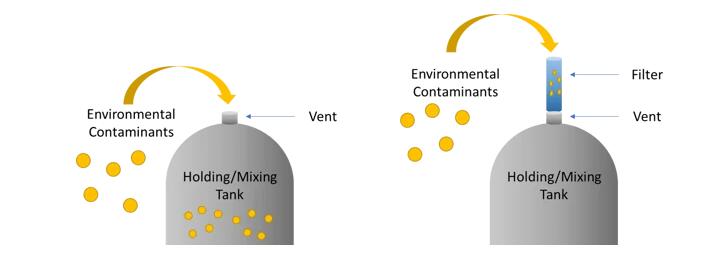

How Vent Filters Contribute to Water Quality

The adage “An ounce of prevention is worth a pound of cure” rings true in the context of water systems, especially in the pharmaceutical industry. Managing bacteria and contaminants requires both prevention and remediation. However, effective prevention is often more straightforward than addressing issues after they arise.

In pharmaceutical water systems, it is important to keep bacteria from entering. Tank vent filters are integral to this prevention strategy. Although the design of the system may differ, at least one storage tank is generally included in every setup.

Tank Vent Filters

Vent filters act as a barrier, preventing bacteria and other airborne contaminants from reaching the water in storage tanks. These filters ensure that only clean air or process gases, like nitrogen, interact with the stored liquids.

When a tank fills, it is essential to allow the air inside to escape. Conversely, as liquid is withdrawn from the tank, air must enter to balance the volume. Vent filters facilitate this airflow while safeguarding the water’s quality.

Why Vent Filters Are Beneficial for Holding Tanks

Holding tanks serve a key function in various industrial environments, providing storage for liquids, wastewater, and other materials. Maintaining safety and regulation in the workplace relies on effective storage practices. One effective method to enhance safety is by using vent filters on these holding tanks.

1. Enhanced Air Quality: A key advantage of vent filters is their ability to enhance the air quality released from holding tanks. By design, these filters eliminate pollutants and impurities, effectively stopping harmful fumes from escaping into the surrounding environment. They also help reduce odors emitted from holding tanks. This is especially significant depending on the stored contents.
2. Enhanced Safety: Effective ventilation is a vital safety measure for laboratories and their associated holding tanks. Inadequate ventilation can cause pressure buildup, leading to potential tank collapse, leaks, or explosions. Vent filters help maintain safe pressure levels, reducing the risk of accidents and the frequency of maintenance and cleaning.
3. Environmental Protection: Vent filters minimize the influence of external conditions on the contents of a holding tank. While these filters safeguard the air outside from contaminants inside the tank, they also shield the stored substance from outside air. This protection ensures more reliable and consistent test results.

Conclusion

It is necessary to recognize that each facility and filtration system design varies. The characteristics of environmental particles can significantly affect the design of the vent filter system and the number of filters needed. Tailoring your filtration approach to specific environmental conditions ensures optimal performance and reliability.
