Polymempure® PP1

Particle Reduction Filter Cartridges

The Polymempure® PP1 element is a depth polypropylene membrane filter assembled using advanced thermal binding technology. It offers broad chemical compatibility, high dirt holding capacity with high flow rates at low-pressure drop, and low extractable.

They are ideally suited for clarification and pre-filtration before membrane filtration. Polymempure® PP1 is particularly suitable for the first pre-filtration step in the Food & Beverage industry.

Polymempure® PP1

Features and Quality

  • High Dirt Holding Capacity
  • High Flow Rate At Low Pressure Drop
  • Cost-Efficient
  • Long Service Life
Features and Quality

Materials

Filter material Single Polypropylene layer
Outer shell Polypropylene
End caps Polypropylene
O-Ring Silicone (optional Buna, Viton, or EPDM)
Retention Rates
0.45 um 0.65 um 1 um 3 um 5 um 10 um 20 um

Available Sizes|Filtration Area

Cartridges 30 5” 0.3 m2 3.7 ft2
31 10″ 0.6 m2 6.5 ft2
32 20″ 1.2 m2 12.9 ft2
33 30″ 1.8 m2 19.4 ft2
34 40″ 2.4 m2 25.9 ft2

Available Connectors

Cartridges 01 222Fin
02 222Flat
03 226Fin
04 226Flat
05 DOE

Operating Parameters

Max. Allowable Differential Pressure 6.9 bar│100 psi 25°C
Max. Allowable Back Pressure 3.0 bar│44 psi 25°C

Sterilization

Autoclave 250°F (121°C), 30 min, 25+ cycles
SIP 250°F (121°C), 30 min, 30+ cycles

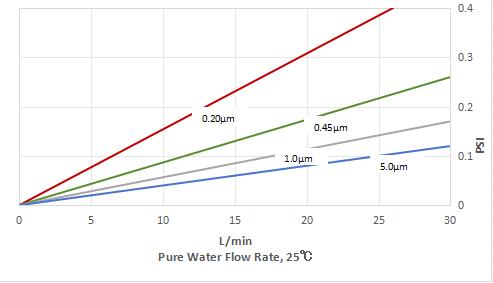

Water Flow Characteristic

Polymempure® PP1 Water Flow Characteristic

720 A 0045 30 01 S A F
Filter Type
720=Polymempure® PP1
Filter Configuration
A=Cartridge
Pore Size
0045=0.45um
0065=0.65um
0100=1.0um
0300=3.0um
0500=5.0um
1000=10um
2000=20um
Filter Size
30=5″
31=10″
33=20″
34=30″
35=40″
Connector
01=222Fin
02=222Flat
03=226Fin
04=226Flat
05=DOE
O-Ring
S=Silicone
E=EPDM
V=Viton
Sterilization
A=Autoclave
F=Food Grade

Features and Quality

Features and Quality
  • High Dirt Holding Capacity
  • High Flow Rate At Low Pressure Drop
  • Cost-Efficient
  • Long Service Life

Specification and Data

Materials

Filter material Single Polypropylene layer
Outer shell Polypropylene
End caps Polypropylene
O-Ring Silicone (optional Buna, Viton, or EPDM)
Retention Rates
0.45 um 0.65 um 1 um 3 um 5 um 10 um 20 um

Available Sizes|Filtration Area

Cartridges 30 5” 0.3 m2 3.7 ft2
31 10″ 0.6 m2 6.5 ft2
32 20″ 1.2 m2 12.9 ft2
33 30″ 1.8 m2 19.4 ft2
34 40″ 2.4 m2 25.9 ft2

Available Connectors

Cartridges 01 222Fin
02 222Flat
03 226Fin
04 226Flat
05 DOE

Operating Parameters

Max. Allowable Differential Pressure 6.9 bar│100 psi 25°C
Max. Allowable Back Pressure 3.0 bar│44 psi 25°C

Sterilization

Autoclave 250°F (121°C), 30 min, 25+ cycles
SIP 250°F (121°C), 30 min, 30+ cycles

Water Flow Characteristic

Polymempure® PP1 Water Flow Characteristic

Ordering Information

720 A 0045 30 01 S A F
Filter Type
720=Polymempure® PP1
Filter Configuration
A=Cartridge
Pore Size
0045=0.45um
0065=0.65um
0100=1.0um
0300=3.0um
0500=5.0um
1000=10um
2000=20um
Filter Size
30=5″
31=10″
33=20″
34=30″
35=40″
Connector
01=222Fin
02=222Flat
03=226Fin
04=226Flat
05=DOE
O-Ring
S=Silicone
E=EPDM
V=Viton
Sterilization
A=Autoclave
F=Food Grade

Common questions about Sanitek

Common Questions about SanitekWhat is the difference between PES and PVDF filter membranes?

The main difference lies in their chemical compatibility and filtration properties. PES (polyethersulfone) membranes offer excellent compatibility with a broad range of solvents, acids, and bases. They are known for their low protein binding and high flow rates.

PVDF (polyvinylidene fluoride) membranes, on the other hand, have superior chemical resistance, making them suitable for aggressive solvents and strong acids. PVDF membranes also provide high protein binding capacity, making them ideal for protein-based applications. The choice between PES and PVDF depends on the specific requirements of the filtration process, including chemical compatibility and protein retention needs.

Common Questions about SanitekHow do you assure the quality of your products?

At Sanitek, we pay attention to the details of every link and strictly adhere to ISO 9001:2008 and ISO 13485:2005 standards to ensure the quality of our products.

In the raw material procurement phase, we work with reliable suppliers to ensure that the quality of raw materials meets our standard requirements.

In the production process, we strictly control the quality of each link to ensure that the manufacturing process of the product is stable and reliable. At the factory inspection stage of the final product, we carry out a comprehensive quality check to ensure that the product meets the customer’s requirements and specifications.

Common Questions about SanitekHow should I order? Who should I contact and how long does it take for material to arrive?

Contact us directly for full details or email us at sales@sanitekfilter.com. And we will get back to you as soon as possible.

Regarding the arrival time of materials, the specific delivery time may vary depending on the product inventory and shipping distance, please inquire about the specific delivery time when contacting the sales team. We will do our best to ensure that you receive the required materials in a timely manner.
